1/2

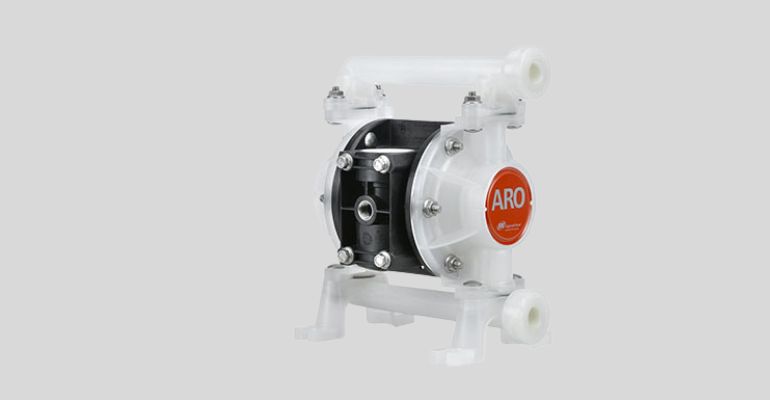

Part of our Compact Series of pumps, our 1/2” compact pumps feature big performance in a small package. They offer flow rates up to 14.4 GPM (54.5 LPM) and a wide range of material and porting configurations.

Available with Long-life PTFE diaphragms.

Features

Designed to meet your OEM application needs.

Manufactured for complete corrosion resistance - constructed with polypropylene center body, standard stainless steel fasteners, and your choice of Groundable Acetal, PVDF (Kynar) or Polypropylene casing materials

Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal

Reliability - AROs patented Unbalanced air valve ensures no-stall operation

Versatility - Center, End, and Dual Inlet / Outlet manifold configurations for your application needs

Environmentally Sound - Bolted construction for leak-free fluid handling

Serviceability - Ease of service through modular design

Accessories

• 66073-1 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5 section of hose
• 637438 Threaded Exhaust Kit
• 76763 Wall Mount Bracket
• 93110 Air Motor Muffler
• 637440-X Dual Inlet / Outlet Kit
• 67165-X Cycle Actuation Kit
• 637428 Air Section Service Kit
• 637427-XX Fluid Section Service Kit

Pump Casing Materials

• Polypropylene
• PVDF (Kynar)
• Groundable Acetal

Diaphragm Material

• Long Life PTFE
• Santoprene
• Hytrel
• Nitrile
• PTFE w/ Santoprene backer
• Polyurethane
• Viton
