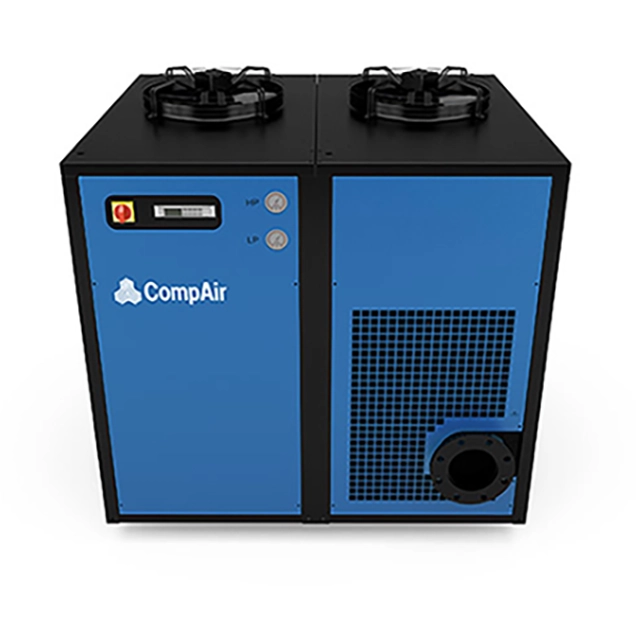

High-Pressure Non-Cycling Refrigeration Dryers — Reliable High-Quality Air for Demanding Environments

Maximum reliability at working pressures up to 45 barg

CompAir high-pressure refrigeration dryers deliver safe and constant quality, dry compressed air for demanding applications such as PET bottle blowing, water-jet cutting, and aeronautical valves, even in ambient temperatures up to 50 °C. With consistent dew-point control of +3 °C for reliable, dry compressed air, this range of ten robust, compact, and space-saving dryers provides maximum reliability at flow rates from 88 m³/h to 1,200 m³/h (at a nominal pressure of 40 barg).

Features

Fully integrated three-in-one stainless-steel heat exchangers deliver reliability and long life, while improving energy efficiency by up to 10% versus previous models. Sustainability is further supported through the use of low-GWP R513A refrigerant. High-pressure non-cycling refrigeration dryers from CompAir—efficiency and reliability by design.

• Dew-point indication.
• ON/OFF switch.
• Terminal for remote alarm signal.
• Anti-freezing protection.
• Refrigerant pressure safety relief valve.
• Variable-speed fan.
• History of last 10 alarms.
• Hot-gas by-pass valve.
• Timed electronic drain valve.
• Electric frequency monitoring.
